Sukflow 10.2KW 48V Hybrid Solar Inverter 120V 240V Split Phase Pure Sine Wave 160A MPPT Operates Without Battery
Inquiry
Collected In Wish List

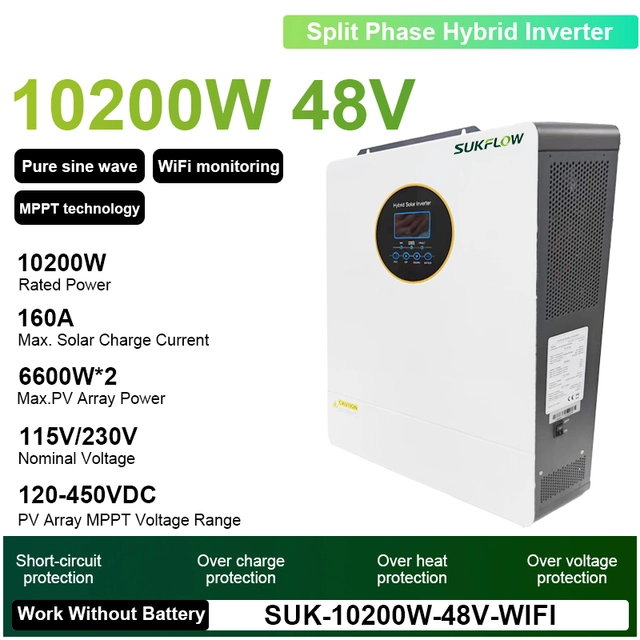

Sukflow 10.2KW 48V Hybrid Solar Inverter 120V 240V Split Phase Pure Sine Wave 160A MPPT Operates Without Battery
SKU: 227181
$653
$653
$688
$ 229.55
to
United States
Via
China Post Air Parcel
You May Also Like
Description
Specification
Questions & Answers (0)
Reviews (0)
Power Your Home with Sukflow 10.2KW Hybrid Solar Inverter
Upgrade your off-grid system with the robust Sukflow 10.2KW 48V split-phase hybrid solar inverter. Perfectly designed to integrate with your home aesthetics while providing a massive 10200W power backup for all your daily needs.
1. Pure Sine Wave & Outstanding Performance
- Split Phase Output: 115Vac/230Vac split phase compatible.
- High Efficiency: Excellent MPPT performance with efficiency up to 99%.
- Wide Voltage Range: Wider PV input voltage range from 100V to 500VDC.
- Battery-Free Operation: Capable of operating perfectly even without a battery connected.
2. Drive Any Load Without Interference
With a powerful 10200W rated output, safely run your sensitive electronics and heavy-duty appliances including TVs, refrigerators, microwaves, and dishwashers. The system seamlessly switches between solar, utility, and battery power.
3. Comprehensive Connectivity & Ports
Equipped with rich communication ports (WIFI, RS232 for BMS) and clearly labeled AC/PV inputs and outputs for an easy and secure installation.
4. Intuitive LCD Display
5. Technical Specifications
- Brand & Model: Sukflow SUK-10.2KW-48V
- Rated Power: 10200W (Peak: 14000W)
- Nominal Voltage: 115Vac/230Vac Split-phase
- Max. PV Array Power: 6600W * 2
- PV MPPT Voltage Range: 120 ~ 450VDC
- Max. Solar Charge Current: 160A
- Battery Voltage: 48V (Compatible with Lithium/Lead Acid)
Product Specifications (Sukflow GES-10.2KW-48V)
- Brand & Product Model: Sukflow SUK-10.2KW-48V
- Rated Output Power: 10200W
- Peak Output Power: 14000W
- Output Nominal Voltage: 115Vac±5% / 230Vac±5% (Split-phase)
- Nominal Output Frequency: 50/60Hz
- Input Voltage: 240VAC (Operating Range: 180-280VAC)
- Maximum PV Array Power: 6600W * 2
- Maximum PV Open-Circuit Voltage: 500VDC
- MPPT Operating Voltage Range: 120-450VDC
- Starting Voltage: 100VDC
- Battery Type: Lithium Ion / Lead Acid
- Battery Voltage: 48V (Voltage Range: 41-58V)
- PV Maximum Charging Current: 160A
- Maximum Continuous Discharge Current: 210A
- Relative Humidity: 96.5%
- Cooling Method: Intelligent air cooling
- Communication Interface: RS232, Lithium battery BMS communication card, WIFI card, 4G
- Display: Color broken code screen, LED lights (mains power, charging status, inverter status, fault)
- Protection Level: IP 21
- Storage Temperature: -10°C ~ 50°C
- Dimensions (W*D*H): 360 * 120 * 500 mm
- Product Weight: 14.5 kg
